ICON VEHICLE DYNAMICS

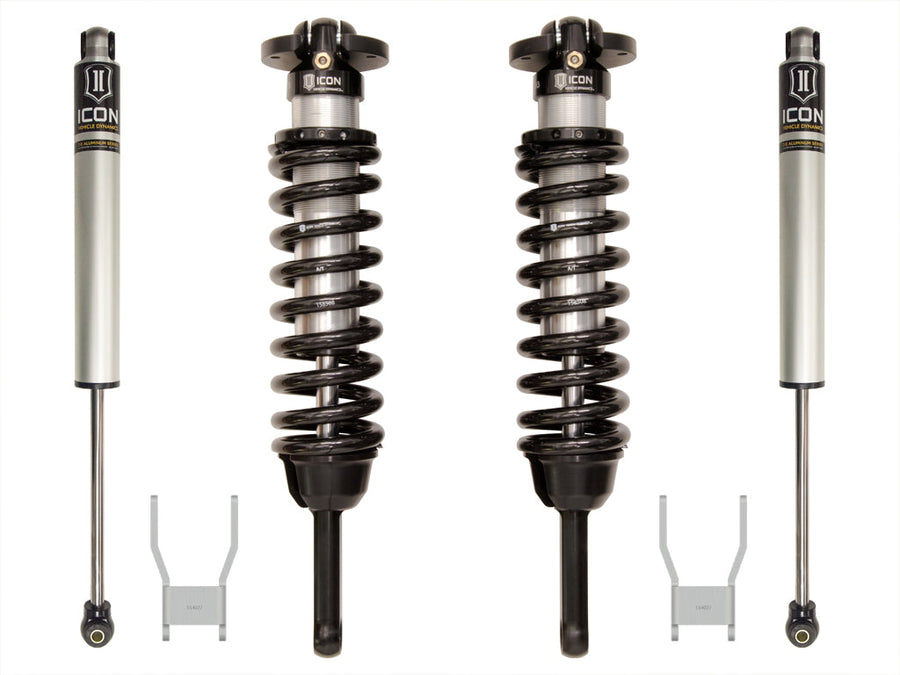

0-3in Stage 2 Suspension System — 2012-2015 Toyota Hilux
Quantity as listed on this product
Condition: New. Product type: Lift Kits.
$2,085.09Quantity as listed
SKU ICON-K53142
Confirm the exact application, position, specifications and included hardware before ordering. Ask fitment help →
USD checkoutFree U.S. shipping30-day eligible returnsSix-month limited warranty
Specifications and purchase information
| Brand | ICON VEHICLE DYNAMICS |
|---|---|
| Product type | Lift Kits |
| Unit of sale | Quantity as listed on this product |
| SKU | ICON-K53142 |
Description:
ICON Vehicle Dynamics¡¯ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON¡¯s research and development process. The Hilux Stage 2 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5¡± coilover shocks feature an internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle ¡°feel¡± throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3¡± allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
Specifics and Features:
100% Bolt-on system - no drilling, cutting, or welding necessary for install
2.0 aluminum body rear shock with 5/8" shaft
6061 Aircraft grade aluminum CNC machined components
Adjustable coilovers from 0-3" of lift height
Corrosion resistant CAD plated coilover shock body with 7/8¡± shaft
FK rod end bearings for extended longevity and minimal deflection
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Package Includes:
Suspension Lift Kit
Compatible With:
2012-2015 Toyota Hilux
ICON Vehicle Dynamics¡¯ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON¡¯s research and development process. The Hilux Stage 2 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5¡± coilover shocks feature an internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle ¡°feel¡± throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3¡± allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
Specifics and Features:
Package Includes:
Compatible With:
Before ordering
Verify the exact selected variant, unit of sale, application, specifications, included components and professional-installation requirements. Do not rely on size alone for fitment.
