ICON VEHICLE DYNAMICS

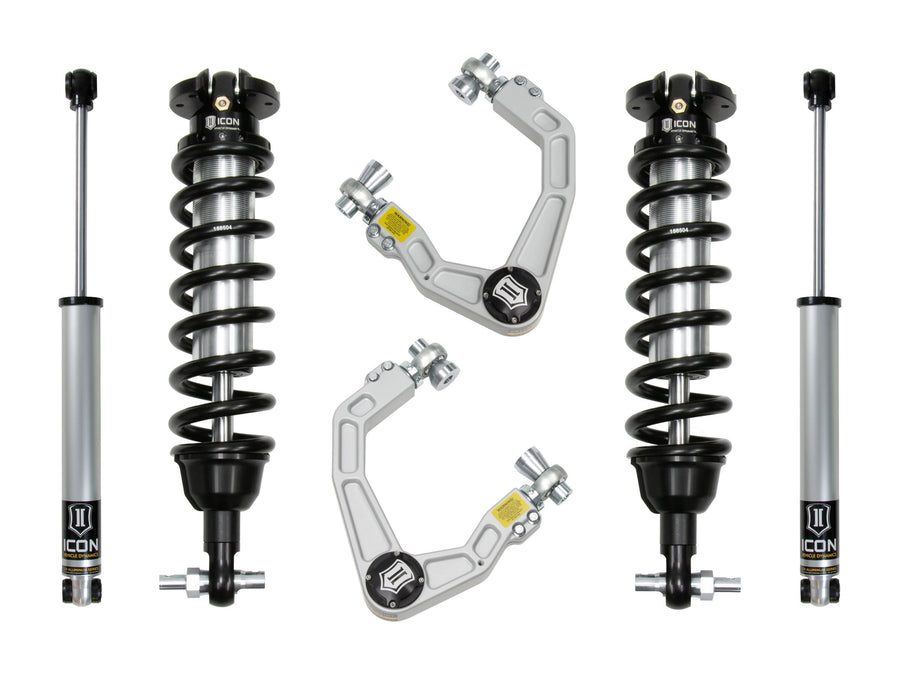

0-3.5in Stage 2 Suspension System — 2019-2021 Ford Ranger
Quantity as listed on this product
Condition: New. Product type: Lift Kits.
$3,412.30Quantity as listed
SKU ICON-K93202A
Confirm the exact application, position, specifications and included hardware before ordering. Ask fitment help →
USD checkoutFree U.S. shipping30-day eligible returnsSix-month limited warranty
Specifications and purchase information
| Brand | ICON VEHICLE DYNAMICS |
|---|---|
| Product type | Lift Kits |
| Unit of sale | Quantity as listed on this product |
| SKU | ICON-K93202A |
Description:
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers¡¯ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform¡¯s suspension and addressed any areas where performance could be extracted. The Stage 2 (Billet) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle ¡°feel¡± through the range of travel. These coilovers are also height adjustable from 0-3.5¡± allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifics and Features:
35% increase in front wheel travel over stock
CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
Direct bolt-in design makes for a simple and straightforward installation
Fits 2WD & 4WD applications
FK Rod End bearings provide extended longevity and minimal deflection
Height-adjustable coilovers provide a range of 0-3.5¡± of front lift height
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
Increased lift height allows for fitment of larger and more aggressive tires
Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Shocks are fully rebuildable and revalvable
Package Includes:
Suspension Lift Kit
Compatible With:
2019-2021 Ford Ranger
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers¡¯ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform¡¯s suspension and addressed any areas where performance could be extracted. The Stage 2 (Billet) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle ¡°feel¡± through the range of travel. These coilovers are also height adjustable from 0-3.5¡± allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifics and Features:
Package Includes:
Compatible With:
Before ordering
Verify the exact selected variant, unit of sale, application, specifications, included components and professional-installation requirements. Do not rely on size alone for fitment.
